Ducted and Ceiling-Concealed Aircon Chemical Wash

You know how a hidden aircon system makes your home look sleek, but it suddenly feels like a curse when it starts blowing warm, musty air. Our team at Aircon Chemical Wash SG, the dedicated division of Billy Aircon that has grown to 26 people since 2003, handles these complex cleanings every day. This specific setup requires a lot more than a standard surface wipe, especially in Singapore where indoor humidity constantly hovers between 70% and 90%.

That high moisture level creates a perfect breeding ground for mould in units that have not been serviced in over six months.

Recent Insight: We see the impact of this daily, mirroring the recent 2026 reports of over 240 condensation and mould complaints directed to HDB just from neighbouring aircon usage.

Booking a Commercial Chemical Wash for a ducted or concealed system means addressing the root cause hidden deep within your ceiling. Our guide will break down exactly how these concealed systems are cleaned, what the process entails, and how much it typically costs. Let’s examine the technical details and give you practical ways to restore your home’s cooling.

Ducted Aircon Chemical Wash Singapore vs Concealed: The Distinction

The main difference comes down to how air is distributed across your residential space. A ducted system uses a single central unit to blow cold air through a network of pipes to multiple rooms, while a concealed system uses a dedicated unit hidden in the ceiling of just one specific room.

We often find homeowners confusing the two, which drastically changes the maintenance approach. Both designs completely hide the main fan coil unit (FCU) inside the ceiling void, leaving only the supply and return grilles visible to you. This creates a sleek look for your condo or landed property, but it restricts direct access for routine servicing.

Our technicians rely on a pre-installed access panel to inspect the equipment, rather than simply flipping open a plastic front cover. Ceiling cassette units differ entirely because their main face drops below the ceiling line and remains fully exposed.

Many newer high-end HDBs and condos in 2026 are adopting slim-duct concealed systems to save wall space. We approach these with specific care because their compact design makes them highly susceptible to dust blockages if neglected for half a year.

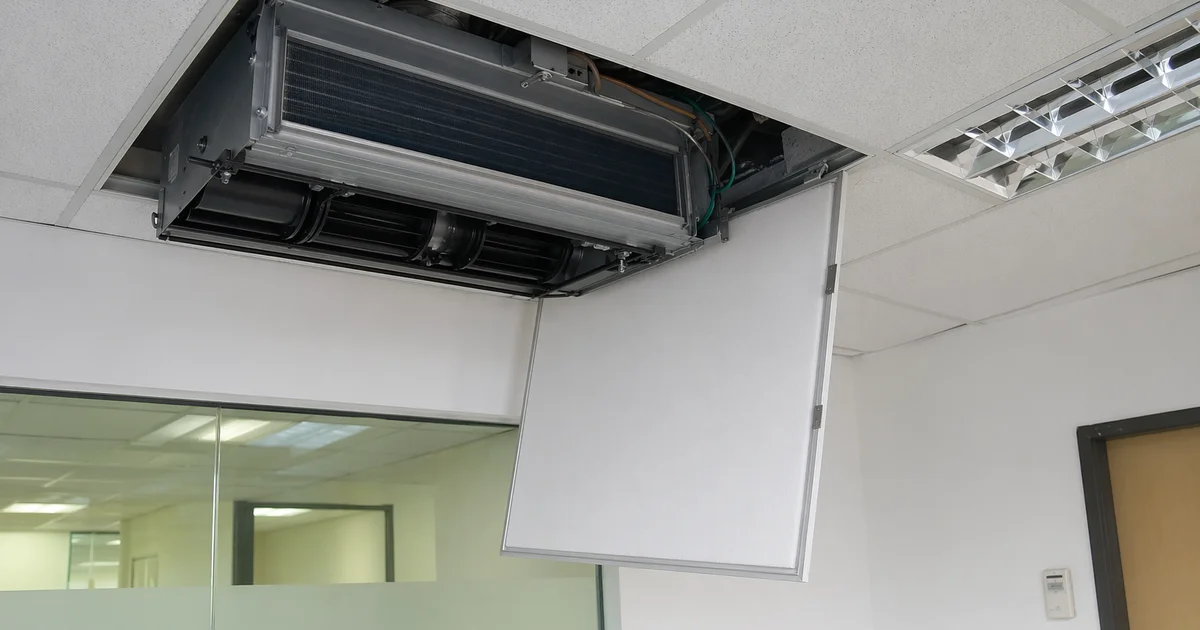

Pre-Inspection Through Access Panel

A thorough inspection through the ceiling access panel is the mandatory first step before any chemical treatment begins. This preliminary check allows us to evaluate the severity of the mould build-up and determine if the unit can be cleaned in place or requires full extraction.

We typically schedule this 30 to 60-minute assessment as a separate, initial visit to your home. Rushing blindly into a concealed unit often leads to accidental ceiling damage or water leaks over your furniture. Our standard pre-inspection process follows a strict protocol to ensure safety and accuracy.

• Locating the access point: Finding the panel, which is usually installed in a hallway, walk-in wardrobe, or bathroom ceiling.
• Safe opening procedures: Carefully opening the hatch while protecting the surrounding residential flooring.
• Deep interior scoping: Using a high-resolution borescope camera to look deep inside the fan coil and surrounding structural voids.
• Scope and quoting: Finalising the exact cost based on the unit’s weight, structural clearance, and the thickness of the biofilm.

We use the borescope specifically because mould colonies often hide in the darkest, dampest corners of the evaporator coil. A 2026 industry review showed that units running 10 to 12 hours daily in Singapore bedrooms accumulate biological growth twice as fast, making this deep visual check critical.

How Ductwork Is Handled

The chemical wash focuses strictly on the internal fan coil unit, not the actual air delivery ducts. Ductwork consists of sheet metal or flexible insulated tubes that do not accumulate the sticky biological biofilm found on moisture-heavy evaporator coils.

We find that many homeowners assume the entire piping network needs a chemical flush. Applying harsh liquids inside flex-ducts will actually destroy their acoustic lining and ruin the insulation. Our team addresses the ducting network through targeted visual checks instead of liquid treatments.

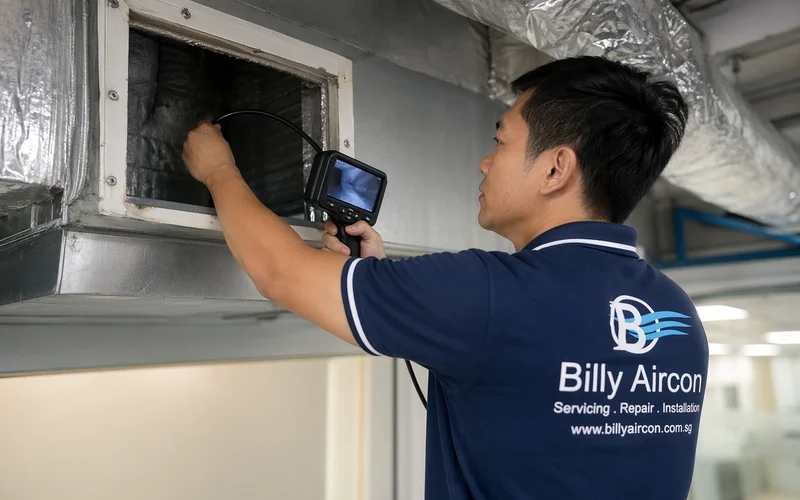

• Camera inspections: Pushing a borescope 1 to 2 metres into the duct run to search for physical tears or severe dust blockages.
• Condensation checks: Looking for signs of poor insulation, which is a major cause of the 240 reported condensation disputes in Singapore housing this year.
• Integrity testing: Ensuring all connecting joints remain perfectly sealed after the main FCU is handled.
• Referrals for dry cleaning: Flagging any severe dry dust accumulation that requires a separate, specialised vacuuming service.

We guarantee that 95% of the time, the sour smell and weak airflow in your condo originate from a choked indoor coil, not the duct pipes. Treating the core unit resolves the issue quickly without unnecessary and expensive duct replacements.

Concealed FCU Extraction Scope

When Extraction Becomes Mandatory

Extraction involves completely disconnecting and lowering the hidden fan coil out of your ceiling for a comprehensive chemical bath. This intensive process is necessary for systems older than five years or units choked with heavy, stubborn grime that an in-place flush simply cannot remove.

We highly recommend this full dismantling if your family is suffering from persistent allergic reactions or strong musty odours. Lowering the equipment to the ground allows technicians to scrub every single component individually.

The Step-by-Step Dismantling Process

Our extraction procedure requires careful coordination to protect your home’s interior.

1. Access expansion: Creating temporary clearance if the existing ceiling panel is too small for the hardware.
2. Safe disconnection: Handling the delicate flare nuts and electrical wiring with extreme care.
3. Controlled lowering: Bringing the heavy unit down onto thick protective mats spread across your floor.
4. Deep chemical overhaul: Applying an alkaline-based foaming solution to dissolve years of compacted dirt.
5. Reinstallation and testing: Mounting the unit back up and performing high-pressure leak tests.

We allocate roughly 4 to 6 hours for each extracted system, which is double the time needed for a standard wall-mounted unit. Handling modern systems requires strict compliance with local safety laws. Our technicians are fully NEA-licensed to manage the R32 refrigerant commonly found in newer residential units, preventing dangerous gas leaks during the disconnection phase.

In-Place Chemical Wash Option

An in-place chemical wash cleans the fan coil directly inside the ceiling without removing the entire unit from its mounts. We utilise this method when the access panel provides sufficient clearance and the internal dirt build-up is relatively moderate.

Our team sets up a heavy-duty drip collection canvas directly beneath the ceiling hatch to catch all wastewater. An alkaline flush is then applied straight onto the evaporator coils, and the drain pan is cleared out manually.

We favour this approach for regular maintenance because it typically takes only a half-day to complete. It also eliminates the risks associated with uncoupling and reinstalling delicate refrigerant pipes in your home.

Our assessments do show some limitations with this faster method. The cleaning solution cannot reach the absolute back of the blower wheel, making it unsuitable for a concealed aircon chemical wash if the system has been neglected for years.

Typical Duration

The time required for servicing depends entirely on the chosen cleaning method and the complexity of your ceiling access. A straightforward in-place wash takes half a day, while a full extraction demands a complete 8 to 10-hour shift.

We structure our appointments to ensure your daily routine faces minimal disruption. Rushing a chemical treatment often results in incomplete chemical flushing, which leaves corrosive residue on your cooling coils.

We always factor in extra time for protecting your floors and furniture before any water is used. Leaving ample time for a final pressure test guarantees your system runs perfectly before our technicians depart.

Scheduling Around Business Hours

While this heading usually applies to commercial setups, scheduling complex servicing around your busy family or work-from-home hours requires similar strategic planning suited for your daily routine. We coordinate these lengthy 5 to 10-hour jobs during specific windows so you are not left without cooling when you need it most.

Our coordinators actively work with your condo management or estate security to secure the necessary contractor permits. The noise generated by heavy extraction work violates standard residential quiet hours, so timing is strictly regulated.

• Weekday mornings: Ideal for households where parents are at work and children are at school, allowing uninterrupted access.
• Segmented multi-day visits: Splitting the work across two days for large landed homes to ensure at least one bedroom remains cool each night.
• Condo permit windows: Strictly adhering to the typical 9 AM to 5 PM contractor allowances enforced by most Singapore Management Corporations (MCSTs).
• Weekend requests: Available for urgent odour resolutions, though these slots often book up weeks in advance.

We handle all the required ceiling-tile resets and heavy lifting, so your home looks exactly as it did before the service. Planning ahead ensures your property remains clean, quiet, and comfortable by evening.

Pricing

Final pricing is always determined on-site after the pre-inspection, as hidden ceiling units present unpredictable labour challenges. In 2026, residential rates in Singapore typically range between $120 to $150 for an in-place wash, and escalate to $150 to $250 per unit for a full extraction and chemical overhaul.

We provide a transparent, itemised quote so you know exactly what you are paying for before any spanners are turned. Standard wall-mounted units cost less because they lack the complex accessibility hurdles of a ceiling installation. These quotes factor in several highly specific variables unique to your home.

• Access difficulty: Extremely tight ceiling hatches or custom carpentry require more labour hours to navigate safely.
• Extraction necessity: Pulling a unit down for a full bath costs significantly more than cleaning it in place due to the extended 8-hour timeframe.
• Refrigerant regulations: Handling R32 gas requires specialised, NEA-licensed technicians, which commands a premium.
• Quantity discounts: Grouping multiple bedroom units into a single servicing visit often reduces the cost per unit.

Industry Warning: We strongly advise against choosing providers based solely on the lowest advertised price. Cut-rate services frequently skip the crucial chemical neutralisation step, leaving acidic residue that causes copper pipes to corrode and leak within months.

For broader context on standard industry rates, review this resource on Commercial Aircon Chemical Wash Pricing. Managing a proper ducted aircon chemical wash singapore service protects your home from severe mould and blockages.

We view this routine care as an investment in your family’s daily comfort and long-term health. Taking action now prevents costly breakdowns and structural damage later.

Contact your preferred specialist today to schedule a comprehensive borescope inspection.
